Product Details
Description
Section
130 mm X 130 mm,
140 mm X 140 mm,
180 mm X 180 mm,
220 mm X 220 mm,
220 mm X 280 mm,
240 mm X 240 mm,
(220 mm X 280 mm X 85 mm BBL)
Lengths
4 mt – 12 mt

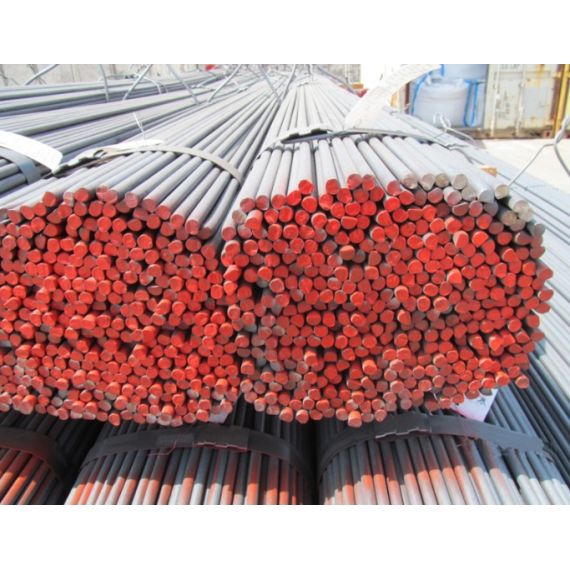

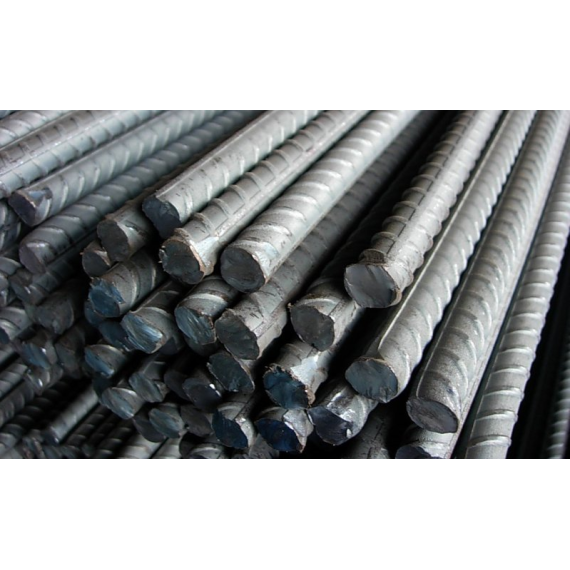

Plain or deformed bars are produced. Production is carried out through hot rolled or quenched temper steel. Standard length is 12 meters. However, production in particular sizes is available, depending on customer specifications.
Diameters Range
Ø 8 mm -Ø 50 mm
Lengths Range
6 mt – 18 mt
Dimension Range

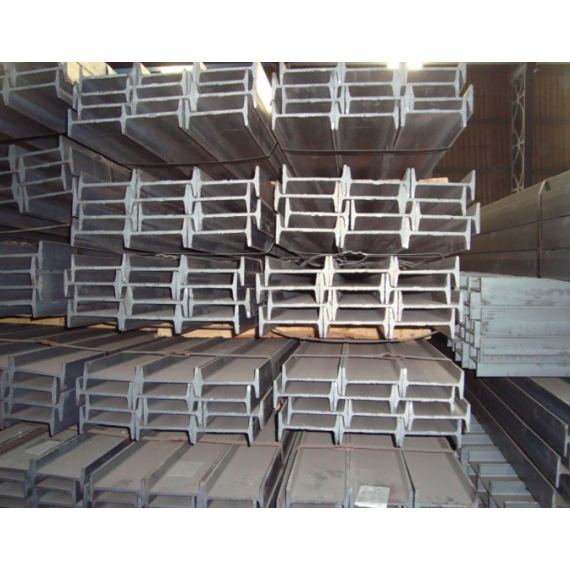

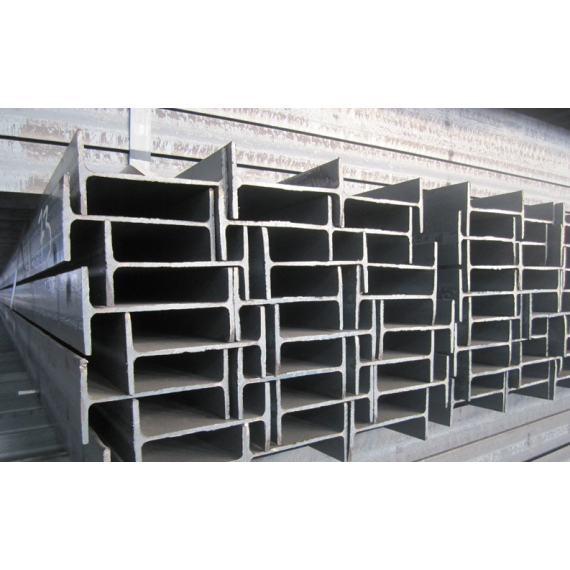

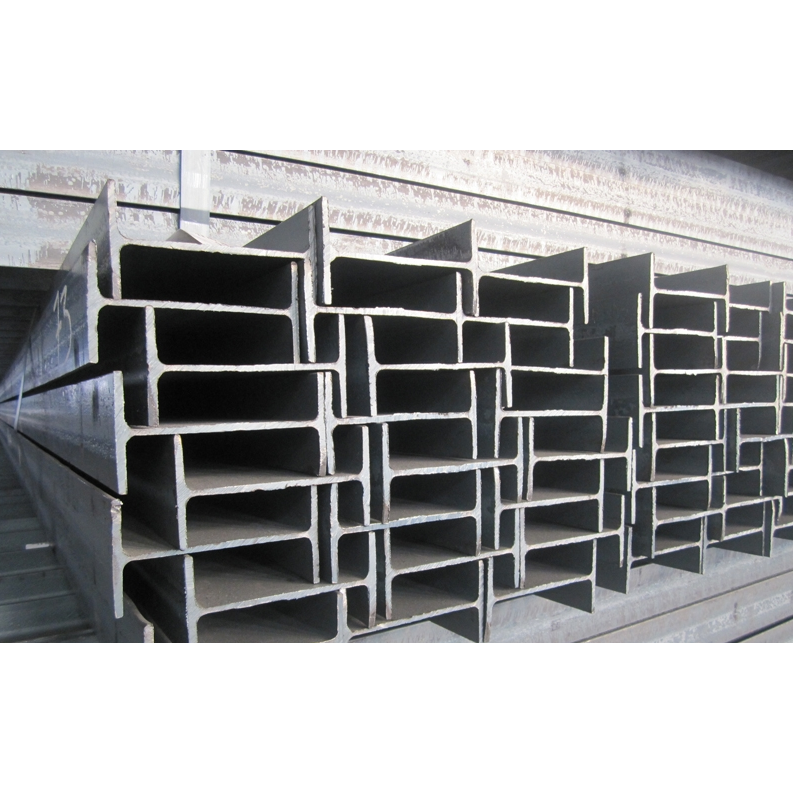

80 mm – 200 mm IPE AAA ve IPE AAAA
80 mm – 300 mm IPN (I beams)
80 mm – 300 mm IPE, IPE A ve IPE AA profiles
100 mm – 200 mm HE A, HE AA, HE B and HE M profiles
80 mm – 300 mm UPN (U channels) profiles
80 mm – 300 mm UPE, UPE A, UPE AA (U channels) profiles
80 mm – 200 mm equal angles
80 mm – 160 mm unequal angles
80 mm – 300 mm bulb flat (Holland profile)
Length Range
6 mt – 15 mt
Bar length: 6, 9, 12, 15 and 18 m and Coiled

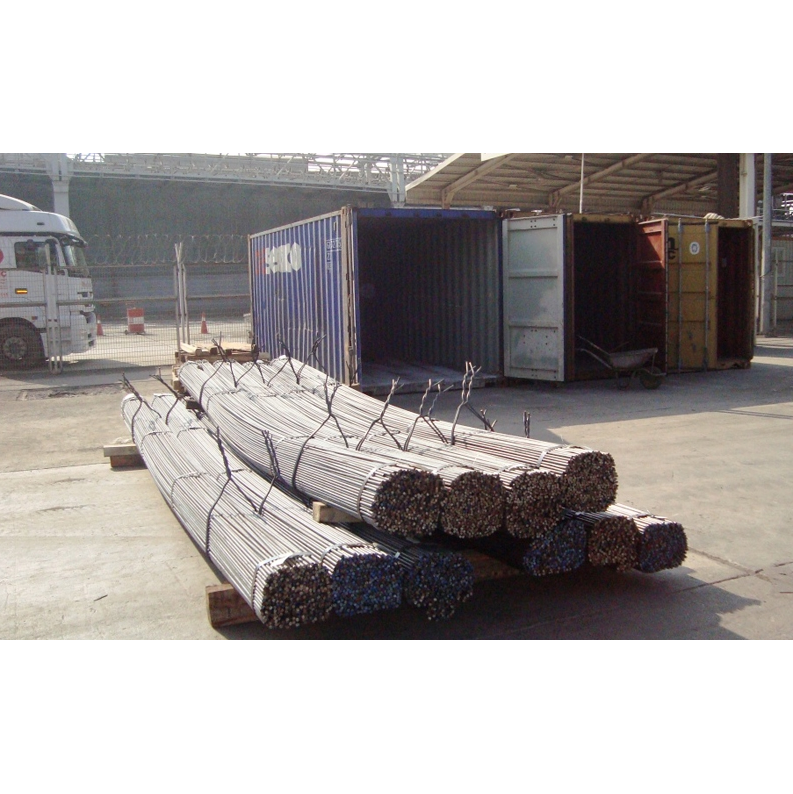

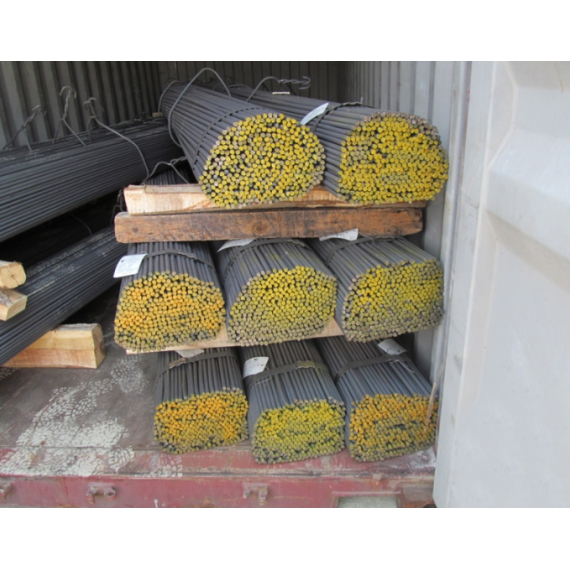

Bundles weight: 2.000 kg approx. in bundle / 1.750 kg approx. in coil
Packaging Condition: Bundles strapped at 3 to 6 spots / coils strapped at 4 spots.
All process variables starting from the receipt of raw materials to the delivery of the end product are continuously monitored and controlled and all coming raw materials, additives, delivered end-products are controlled carefully in laboratories to assure productivity and quality performance in accordance with relevant standards and specifications.
COUNTRY STANDART QUALITY
USA ASTM A 615 GR 40
ASTM A 615 GR 60
ASTM A 706 GR 60
GERMANY ASTM A 615 B 500 (B)
ASTM A 615
ASTM A 706
U.A.E. BS 4449: 1997 GRADE 460 B
BS 4449: 2005 GRADE B 500 B
ASTM A 615: 2009 GRADE 60
BULGARIA BDS 4758 – 2008 B 420 B
BDS 9252 – 2007 B 500 B
ENGLAND BS 4449: 1997 Gr 460 B
BS 4449: 2005 Gr 500 B
BS 4449: 2005 Gr B 500 C
SPAIN UN 36 068: 1994 B 500 S
UNE 36 0656: 200 EX B 500 SD
RUSSIA GOST R 5244: 2006 A 500 C
BRASIL NBR 7480: 2007 CA 50
TURKEY TS 708: 2010 S 420
B 420 B
B 420 C
B 500 B
B 500 C
EURONORM EN 10025: 2004 S 235
S 275
S 355
