GROSS AREA
90 m2
TOTAL AREA

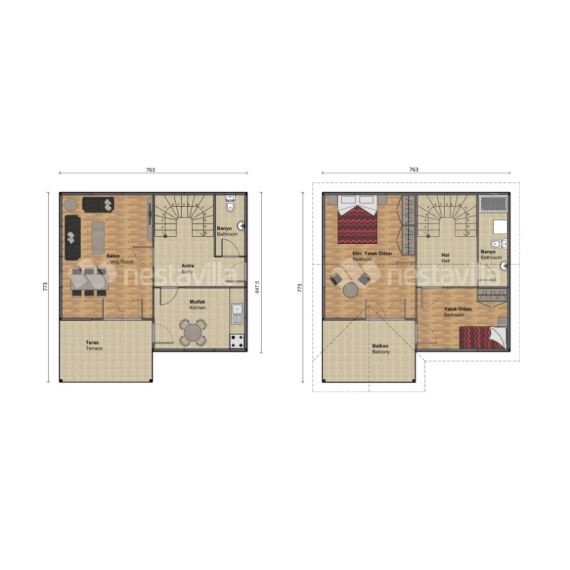

108 m2 FLOOR FLOOR PLAN
HALL 19 m2
KITCHEN 9 m2
BATH 3 m2
ENTRANCE 11 m2
GROSS AREA 45 m2
TERRACE 9 m2
1. FLOOR PLAN
master bedroom 19 m2
BEDROOM 9 m2
BATHROOM 5 m2
HALL 9 m2
GROSS AREA 45 m2
BALCONY 9 m2
OUTER WALL
Outer Wall Thickness 100 mm
Height (h) 2500 mm
Exterior Cladding 8 mm thick Fibercement
(Flammable, not affected by water, Class A1, Reinforced by Press)
Thermal Insulation Material 84 mm thick EPS (14 kg/m³)
Fire Resistance is in the "B1" class, which has "difficult flammability" according to DIN 4102.
Panel Joint System Specially designed and detailed Galvanized joint elements are provided without the use of welding.
Exterior Wall Inner cladding 8 mm thick Fibercement
(Flammable, not affected by water, Class A1, Reinforced by Press)
INNER WALL
Inner Wall Thickness 60 mm
Height (h) 2500 mm
Interior Wall Cladding 8 mm thick Fibercement
(Flammable, not affected by water, Class A1, Reinforced by Press)
Heat Insulation Material 44 mm thick EPS (14 kg/m³)
Fire Resistance is in the "B1" class, which has "difficult flammability" according to DIN 4102.
Panel Joint System Specially designed and detailed Galvanized joint elements are provided without the use of welding.
Inner Wall Inner cladding 8 mm thick Fibercement
(Flammable, not affected by water, Class A1, Reinforced by Press)
ROOFING
Roof covering 0.50 mm 27/200 painted trapezoidal section sheet metal
Purlin Special Shaped galvanized profile purlin
Roof Carrier System consists of profiles specially designed from galvanized sheet metal.
Joints are made with bolts and screws without the use of welding.
Fringe Head scissors section is 2 cm wide and 15 cm wide in the other direction.
Rain Gutter Stream and descent are included.
Eaves Ventilation Ventilation holes are located on the eaves and truss forehead Vs to prevent sweating and to ventilate the roof.
DOORS
EXTERIOR DOORS (STEEL)
Size 860*1960 mm
Door Unfurnished Steel Door
Door Frame 1.5 mm galvanized sheet
EXTERIOR DOORS (DOUBLE ALUMINUM)
Size 1600*1960 mm
Door Aluminum Door (1/2 Glass – 1/2 Paneling)
Door Frame 1.5 mm galvanized sheet
EXTERIOR DOORS (PVC SLIDING)
Size 1600*1960 mm
Door PVC glass single leaf sliding door
Door Frame White PVC
INTERIOR DOORS
Size 860*1960 mm
Door American Panel
Door Frame 1,2 mm galvanized sheet (Electrostatic oven painted) (RAL 9002)
WINDOWS
Normal Window 100x120 cm PVC joinery
Double Opening mechanism is excluded.
Transom Window 40x60 cm PVC joinery.
Swatter Excluded.
CEILING
Suspended Ceiling Covering
Dry Volumes 12.5 mm thick 60x120 Painted Gypsum Board (Fx)
Wet Areas 12.5 mm thick 60x120 water resistant plasterboard (Wr)
Insulation Material 80 mm thick Glasswool
Suspended Ceiling Construction Specially designed Galvanized RAL 9002 electrostatic oven painted Omega Profiles
