Product Details
Description
Certificates: It has TSE documents which include TS EN 61587-1 (mechanical structures for electronic devices) IEC 60917, IEC 60297 standards.

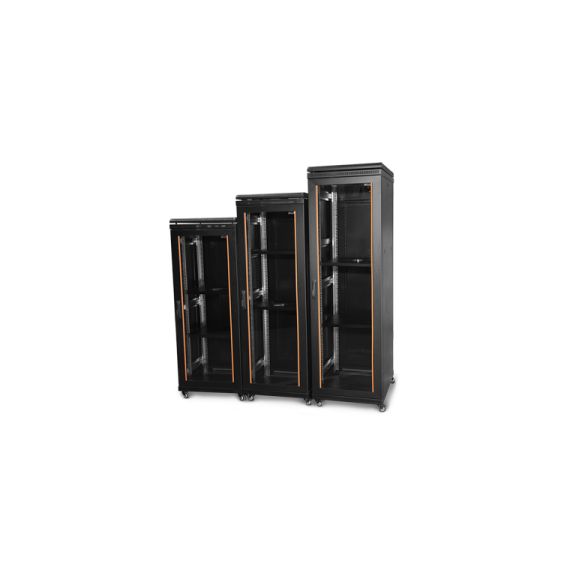

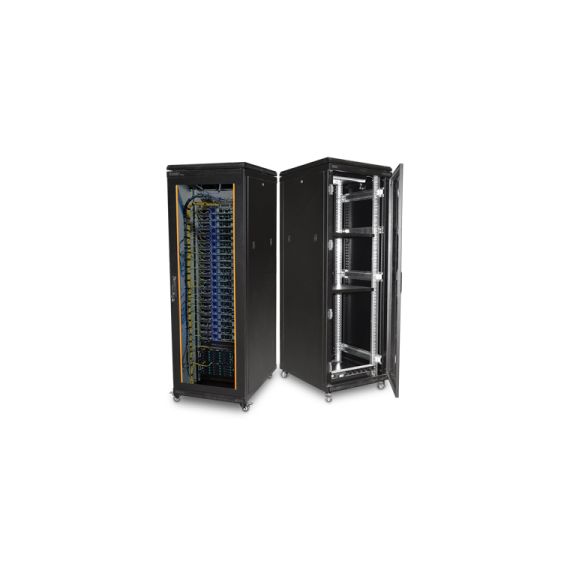

Dimensions: Inner use capacity of cabinets (16U,20U,22U, 26U,32U,36U,40U,42U,44U) Outer parts to outer parts; width is net 600mm or 800mm, depth is net 600mm or 800mm or 1000mm.
Main chassis and profile structures: axial (x, y, z) strength is manufactured and tested to provide resistance to external impacts. Dynamic load, vibration, and mechanical impact test results are documented by TSE.
Main profile structure: It has aesthetic appearance structure which increases mechanical strength.
Rear cover and side covers: They have a structure which is openable, removable, and lockable.
Front covers: tempered, anti static, smoky colored, grinding, 4mm.+/- %5 cam glass. 600x600mm and 600x800mm cabinets have single front cover.
Dye: Cabinets: Electrostatic RAL 9005 Black powder dye to provide high strength against impacts. Metal surfaces: 80 +/- 5-micron dye thickness is provided.
Lower and upper CHASSIS: It has multi-layered bending technology which increases
cabin strength and resistance.
19" mounting pillar: It is manufactured and mounted with a total of 6 horizontal profiles on the right / left side that can move along the depth of the cabin with 2 units at the front and 2 units at the rear, pillar branded with "U" measurements with serigraphy has 1.5mm thickness.
Locks: All covers of the cabinet are lockable, knob lock in the front cover and "O" locks in the side covers have the same keys.
