OUR MACHINE
- CI Type Flexo Printing Machine
- Stack Flexo Printing Machines
- Label Printing Machines
- Tower Type Printing Machines
- BOX BAND PRINTING MACHINE
- Slicing Machines/

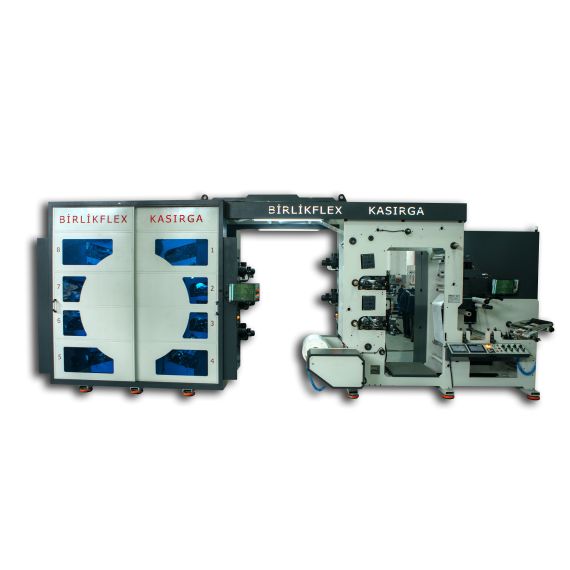

Accepted as the most professional machine in the flexo label industry, the Sleeve System Drum Label Machine provides the highest efficiency in terms of performance. Print quality and speed are maximum, knocking and vibration are minimal. Sleeve system plate boiler and Ceramic are used. Since the sleeve system plate boiler is very light, it can be easily placed with a single operator without the need for a crane system and can be printed very quickly.
Features- Print speed 250m/min
- Hydraulic bobbin lift unit in warp
- Winding Coil diameter 600mm
- Warp Coil Diameter 1000mm
- PLC Touch screen
- Press-fit system with PLC
- camera control system
- Speed sensitive energy saving Infrared drying system
- Drying unit after each color
- Linear guide system
- Drying Tunnel
- Intermediate tension system with loadcell
- Edge Control unit
- mixer motor system
- Sleeve system Ceramic anilox roller
- Sleeve system Plate roller
- Ragle: Doctor Blade Scraping system
- Color numbers – 6-8-10
- Print widths 50 cm
- Print Repeat : 350-500 mm
- High energy saving
- compact design
- UV-IR Cassette type drying system
- Rotary blade and razor slicing system
- Label printing and slicing unit
